Lottie Animations

Sync Lottie Player animations with your Motion.page timeline.

Lottie ties the playback progress of a Lottie Player web component to your Motion.page timeline. Instead of running independently, the Lottie animation scrubs forward (or backward) in lock-step with however your timeline progresses — whether that is a scroll scrub, a page-load play-through, or an interaction trigger.

Location

Left Panel → Animation tab → Visual Properties → Lottie

Lottie is a functional property — it is direction-agnostic. The same Lottie configuration applies whether the From, To, or Set tab is active. Enabling it on any tab automatically enables it on all three.

Enable Lottie

Click the toggle next to Lottie to enable it. The row expands to reveal a playback range slider and the reverse toggle.

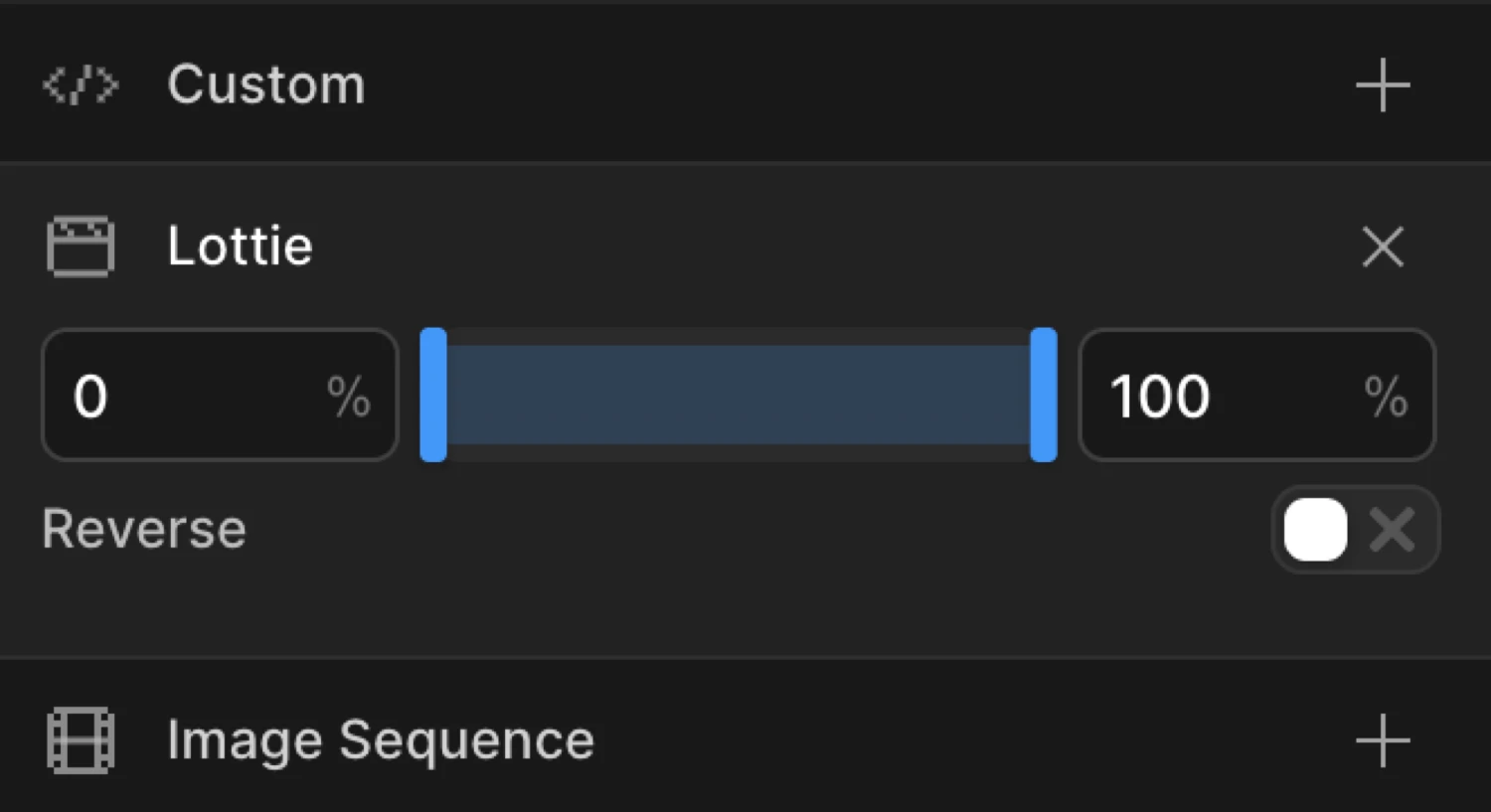

Lottie controls expanded — playback range slider and reverse toggle

Controls

Control	Type	Default	Description
Start %	Number input	`0`	Start position of the playback range as a percentage (0–100).
End %	Number input	`100`	End position of the playback range as a percentage (0–100).
Range slider	Slider	Full range	Visual slider to drag the start and end points of the Lottie playback range.
Reverse	Toggle	Off	Play the Lottie sequence in reverse order of playback.

Partial playback

By default Motion.page drives the Lottie from its first frame to its last frame across the full timeline duration. Enter a Start and End frame to animate only a slice of the Lottie — for example, frames 30–60 out of a 90-frame sequence. Anything outside that range stays frozen at the boundary frame.

Leave both frame inputs empty to animate the full Lottie. You can also set only one boundary — for example, set End to 60 to stop playback two-thirds through without clipping the start.

Reverse

Enable Reverse to invert playback direction. As the timeline progresses forward, the Lottie steps backward through its frames. Combine with partial playback to reverse only a segment of the animation.

Prerequisites

The Lottie Player web component must be loaded on the page before Motion.page attempts to control it.

Add the Lottie Player script to your page’s <head> or before the closing </body> tag:

html

<script src="https://unpkg.com/@lottiefiles/lottie-player@latest/dist/lottie-player.js"></script>

Then place a <lottie-player> element somewhere in your page markup:

html

<lottie-player
  id="my-lottie"
  src="https://assets.lottiefiles.com/packages/lf20_example.json"
  background="transparent"
  speed="1"
  style="width: 300px; height: 300px;"
  loop
  autoplay
></lottie-player>

Set the Selector field in Motion.page to the element’s CSS selector — for example #my-lottie or .hero-lottie. Motion.page takes control of playback; you can remove autoplay and loop once the timeline is driving it.

WordPress users: Add the script via a custom HTML block or your theme’s functions.php. Desktop users: paste it into the Custom Code panel in the Settings tab.

How it works

Motion.page drives the Lottie by setting the player’s seek position as the timeline progresses. The Lottie never plays on its own clock — it is entirely slaved to the timeline’s current progress.

Scroll Trigger + Scrub — the Lottie frames advance and retreat as the user scrolls. The animation literally scrubs with the page position.
Page Load trigger — the Lottie plays from its start frame to its end frame as the timeline plays through its duration.
Interactions (Click / Hover) — the Lottie advances on enter and optionally reverses on leave, depending on your toggle actions.

Partial playback works the same way across all triggers — Motion.page maps the timeline progress 0 → 1 onto the configured frame range rather than the full Lottie duration.

Common patterns

Lottie on scroll scrub

The most common use case. A Lottie illustration plays frame by frame as the user scrolls down the page.

Add a <lottie-player> element with your animation JSON.
Select the element in Motion.page and open Lottie in the Visual Properties list.
Enter the element’s selector (e.g. #hero-lottie).
Set the trigger to Scroll Trigger and enable Scrub.
Adjust Start / End scroll positions to control when the animation begins and ends.

The Lottie will scrub forward as the user scrolls into the trigger zone, and backward if they scroll back up.

typescript

import { Motion } from '@motion.page/sdk';

Motion('hero-lottie', '#hero-lottie', {
  lottie: {
    selector: '#hero-lottie',
  },
}).onScroll({
  scrub: true,
  start: 'top center',
  end: 'bottom center',
});

Partial playback — animate only frames 30–60

A 90-frame Lottie has three distinct animation phases. Map a single Motion.page timeline to only the middle third.

Enable Lottie and enter the selector.
Set Start frame to 30 and End frame to 60.
Attach any trigger — scroll scrub, page load, or interaction.

Only frames 30–60 will animate. Frames 0–29 and 61–90 remain frozen at their boundary positions.

typescript

Motion('lottie-partial', '.lottie-icon', {
  lottie: {
    selector: '.lottie-icon',
    start: 30,
    end: 60,
  },
}).onScroll({
  scrub: true,
  start: 'top 80%',
  end: 'bottom 20%',
});

SDK equivalent

Lottie maps to the lottie property in the SDK config object. Pass the element’s selector and optionally a frame range.

Full playback on scroll scrub:

typescript

import { Motion } from '@motion.page/sdk';

Motion('scroll-lottie', '#my-lottie', {
  lottie: {
    selector: '#my-lottie',
  },
}).onScroll({
  scrub: true,
  start: 'top center',
  end: 'bottom center',
});

Partial playback with reverse:

typescript

Motion('lottie-reverse', '.lottie-player', {
  lottie: {
    selector: '.lottie-player',
    start: 60,
    end: 90,
    reverse: true,
  },
}).onScroll({
  scrub: true,
  start: 'top 70%',
  end: 'bottom 30%',
});

Page load — plays through with the timeline:

typescript

Motion('lottie-load', '#intro-lottie', {
  lottie: {
    selector: '#intro-lottie',
  },
  duration: 2,
  ease: 'none',
}).onPageLoad();

For the full SDK reference, see Lottie in the SDK.

Scroll Trigger — Drive Lottie playback with scroll position using Scrub
From, To & Set — How functional properties apply across animation mode tabs
Image Sequence — Similar frame-by-frame scrubbing using a sequence of images instead of Lottie
